June 27, 2004 - update

This week, I see that there are 5 stays on both sides of the west pylon and 5 on the eastern side of the east pylon and 4 on the western side of the east pylon. Below are a few photos showing the pylons, stays and ramps.

An overview of the approaches and pylons

A bicycle view of the pylons - 7:30 am

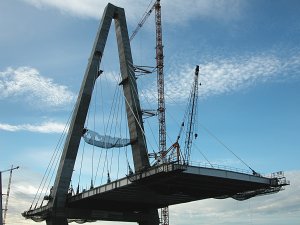

West Pylon and Platform

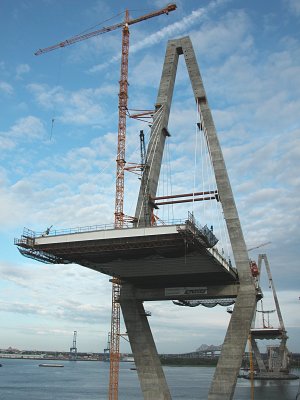

East Pylon and Platform

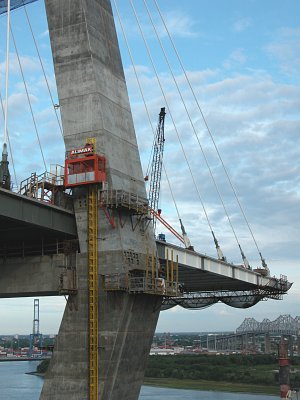

West Pylon Stays

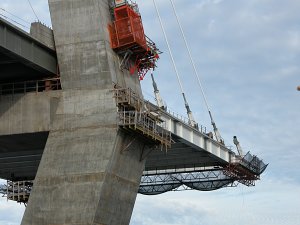

East Pylon Stays

West Approach

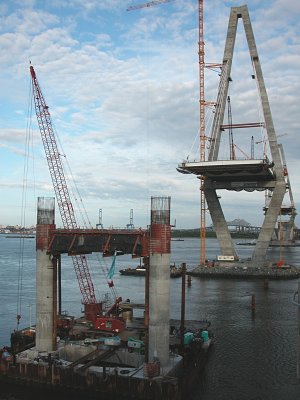

East Approach

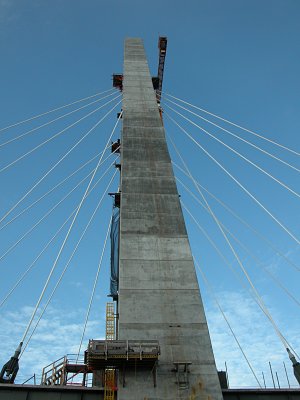

West Pylon Cables

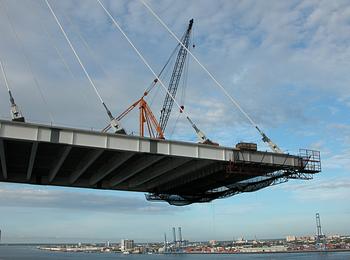

Charleston - from under the West platform

Some observations about placing steel beams on the approach piers has moved to steel.php
